Inverter Battery Load Calculator

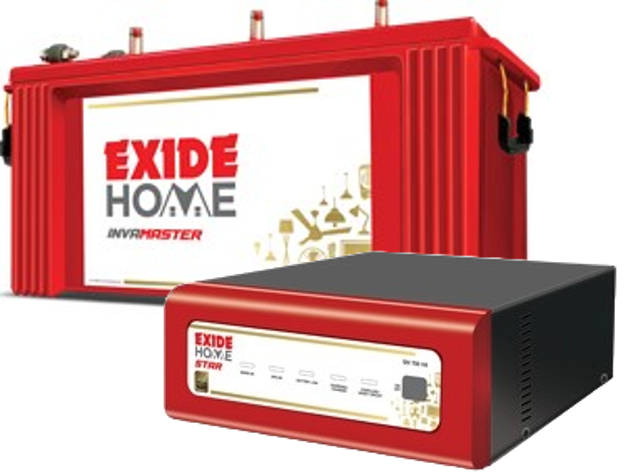

Exide STAR 900VA Inverter Exide Inva Master Tubular 1000 / 100AH
Warranty - Inverter 36+6 Months & Battery 36+24 Months Warranty
:
₹ 17,700
- Brand New & 100% Genuine
- Credit card, Debit card, Google Pay, Paytm and Netbanking Available
- Same Day Delivery Available
- Free Delivery within 20 km
- Exchange for old batteries
- Delivery Charges Applicable Beyond 20 km
- Installation Support Available (Charges Extra)
Review this product
Technical Specifications of Exide Inverterz Star
| Description | STAR 12V 650VA | STAR 12V 850VA | STAR 12V 1050VA | STAR 24V 1450VA |
|---|---|---|---|---|
| Output Voltage at No Load | 220V ± 7V AC | |||
| Output Frequency | 50Hz ± 1Hz | |||
| Output Wave Form | Pure Sine Wave | |||
| Nominal Battery Voltage | 12V DC | 24V DC | ||
| Battery Low Cut Off | 10.5V ± 0.2V DC | 21.0V ± 0.4V DC | ||
Charging Mode
| Model | STAR 12V 650VA | STAR 12V 850VA | STAR 12V 1050VA | STAR 24V 1450VA |
|---|---|---|---|---|
| Maximum Charging Current (NC) | 11Amps ± 1Amp | 12Amp ± 1Amp | 13Amp ± 1Amp | 12Amp ± 1Amp |
| Maximum Charging Current (HC) | 15Amps ± 1Amp | 17Amp ± 1Amp | 18Amp ± 1Amp | 17Amp ± 1Amp |
| Boost Charging Voltage | 14.4V ± 0.2V DC | 28.8V ± 0.4V DC | ||
| Trickle Charging Voltage | 13.7V ± 0.2V DC | 27.4V ± 0.4V DC | ||
| Charging Current at 120V Mains Input | 8-10 Amp Charging Current* | |||
| Charging Over Time Mains to Back-up (@ UPS Mode) | ? 10 msec | |||
| Charging Over Time Back-up to Mains (@ UPS Mode) | ? 10 msec | |||
| Input Voltage Range (@ UPS Mode) | 180V - 270V ± 10V AC | |||
| Change Over Time Mains to Back-up (@ Normal Mode) | ? 40 msec | |||
| Change Over Time Back-up to Mains (@ Normal Mode) | ? 10 msec | |||
| Input Voltage Range (@ Normal Mode) | 90V - 300V ± 10V AC | |||
